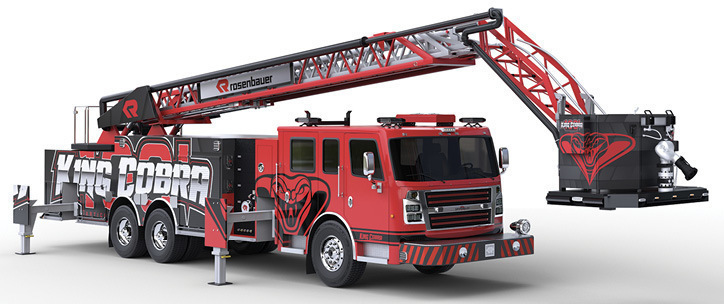

King Cobra
The King Cobra™ is an NFPA-compliant articulated platform elevation device designed to operate in narrow areas.

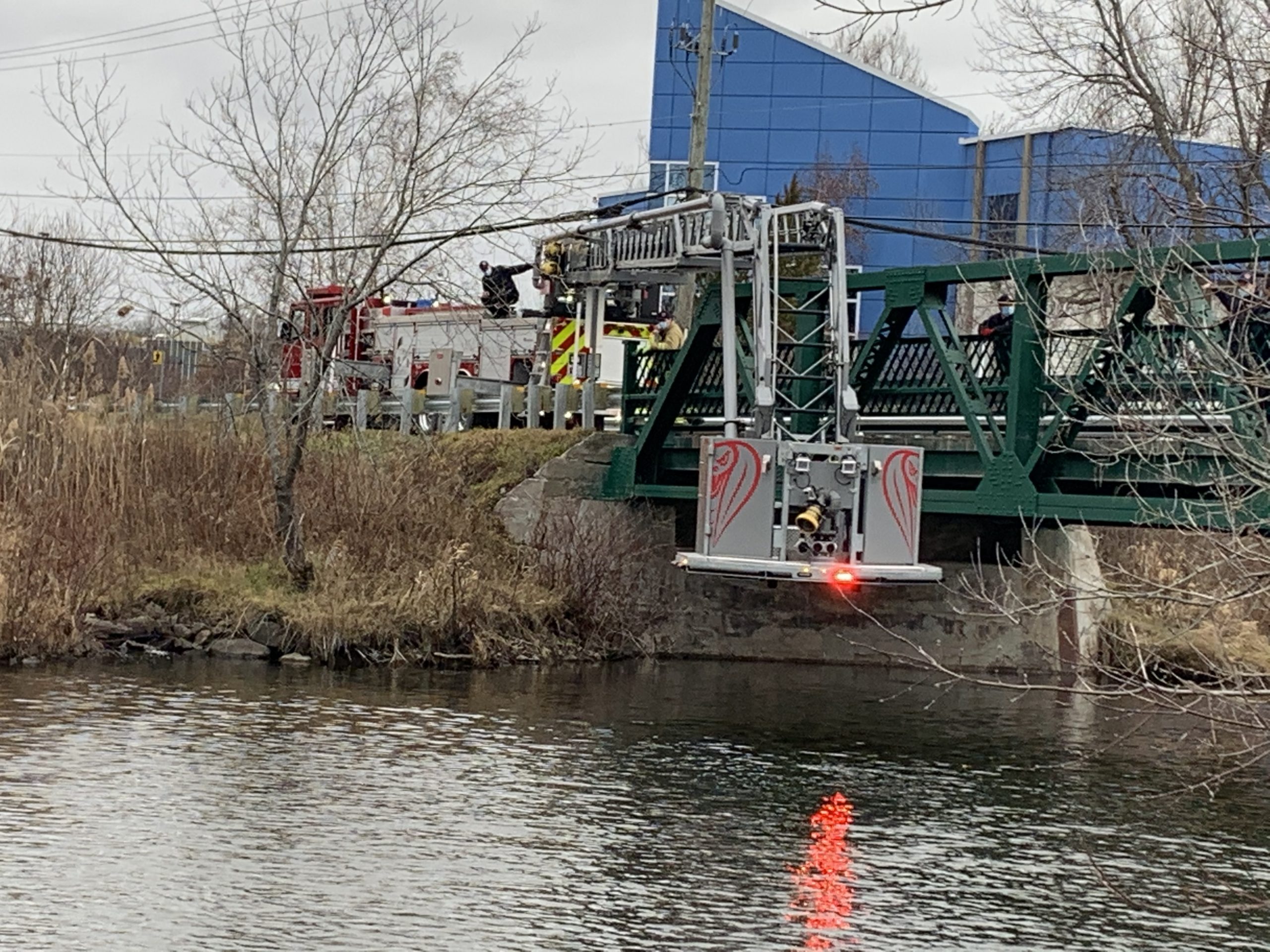

The King Cobra’s articulated platform allows, through its unique design, to reach the roof slopes opposite the façade of a building, under a bridge, or descend up to 20 feet below the zero axis.
Use: Municipal, industrial
- For available equipment options, see the tabs below.
Specifications
Configurations
Options
Documentations
Gallery
Articles
Videos
- Model: King Cobra
- Rosenbauer chassis: Commander
- Engine: Cummins™
- Engine power : –
- Body: Extruded (EXT)
- Ladder: 100′
- Below grade operations: 20 feet below grade
- Platform capacity: 1,000 pounds
- Overall length: 42′ to 48′ 2 “
- Overall height: 12′
- Pump configuration: Side (MP3)
- Pump: Rosenbauer, Darley, Waterous, Hale
- Pump capacity: up to 1750 GIPM
- Water tank: up to 500 imperial gallons
- Foam system: FoamPro ™ (high volume)
Features:
- CAN-bus electronic system monitors the Aerial functions 16 times per second
- Collision protection system, platform and body
- H-stabilizer:
- Short jacking function
- Hot-dip galvanized steel stabilizer and torsion box (25-year warranty)
- 2 cylinders at the front and at the rear
- Range: 15 ’6’ ’to 17′ 6 “
- Electronics
Ladder
- SMART
- Hot-dip galvanized steel (25 year warranty)
- Aerial ladder automated storage function
- “Soft Touch” joystick for precise, smooth and safe handling of the ladder
- Aerial command seat (ACS) or pedestal
- Remote operations with the Radio Remote (ladder, monitor and stabilizers)
- 250 sq. Ft. Of storage space
- Ez-Climb™ Ladder
- Complies with NFPA standard
