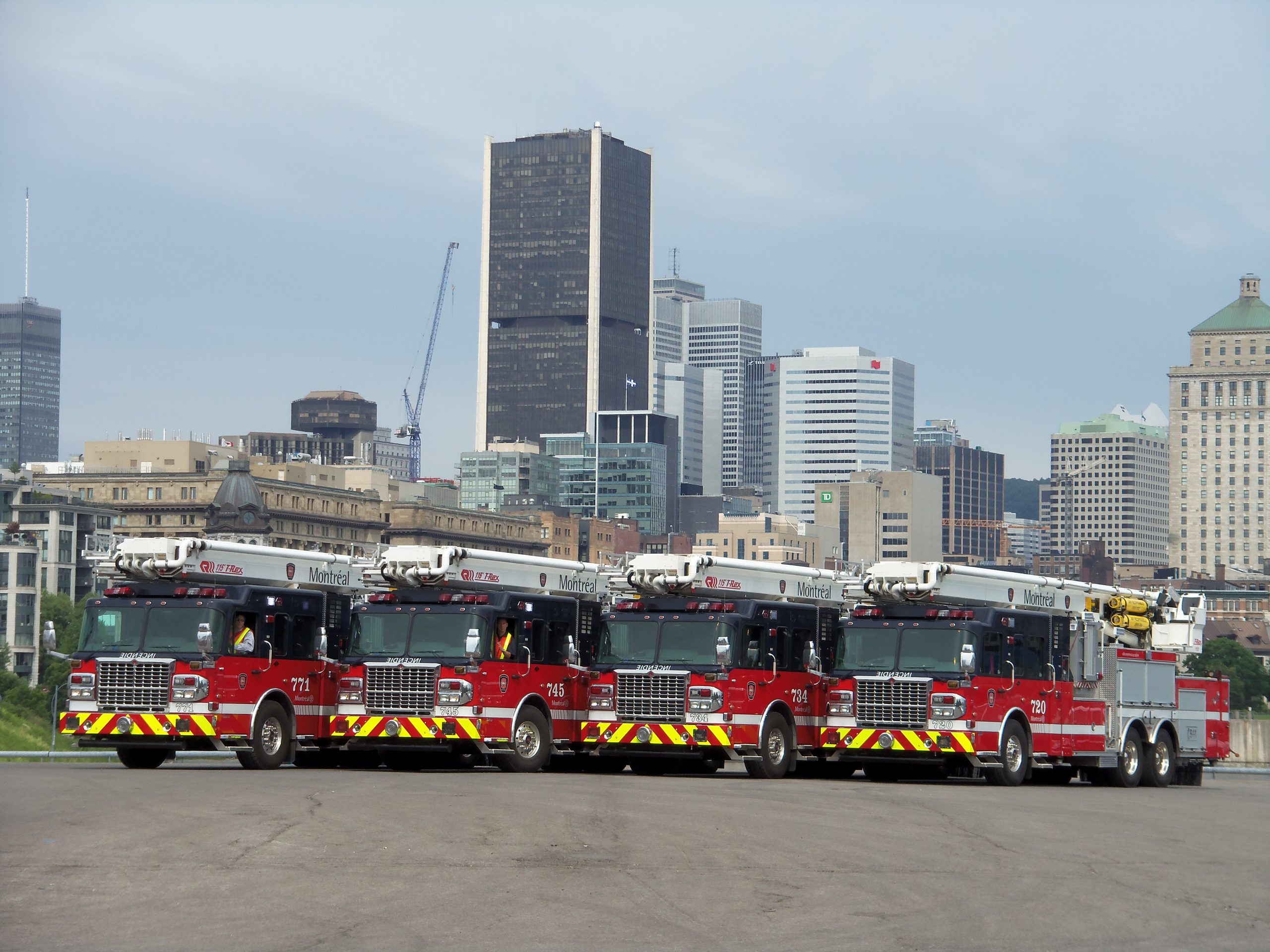

T-Rex
Rosenbauer’s T-Rex™ articulated ladder fire truck is equipped with a fast and powerful articulated telescopic ladder. The CAN-bus electronic control system makes it possible to deploy the stabilizers, raise the gimbal to 115 feet and rotate it 90° in less than 95 seconds!
Fully compliant with the NFPA standard as an aerial platform or Quint, the T-Rex™ aerial ladder is equipped with a pump, a 300-gallon water tank, a hose bed, and a 115-foot articulated mast.
The T-Rex™ ladder truck is known for its speed of execution, agility, and versatility!
Use: Municipal, industrial
- For available equipment options, see the tabs below.
Specifications
Configurations
Options
Documentations
Gallery
Articles
Videos
- Model: T-Rex™
- Rosenbauer chassis: Commander
- Engine: Cummins™
- Engine power: 505 to 605 HP
- Body: Extruded (EXT)
- Ladder: 115′, lateral reach of 93′
- Below grade operations: 18 ° below grade
- Platform capacity: 1,400 lbs. (5 people)
- Overall length: 39′ 2″
- Overall height: –
- Pump configuration: Side (MP3)
- Pump: Rosenbauer, Hale, Waterous
- Pump capacity: 1,750 GIPM
- Water tank: up to 300 imperial gallons
- Foam System: FoamPro™ (High Volume), 20 to 30 gallons
Features:
- LCD screen
- CAN-bus electronic system monitors the Aerial functions 16 times per second.
- Collision protection system, platform and body
H-stabilizer:
- Short jacking
- Hot-dip galvanized steel stabilizer and torsion box (25-year warranty)
- Self-leveling, 2 at the front and 2 at the rear
- Range: 14′ 9″
- Electronics
Ladder:
- SMART
- 96 ° swivel platform
- 4 spray nozzles on the platform
- Aerial ladder automated storage function
- Stretcher support on the basket
- “Soft Touch” joystick for precise, smooth and safe handling of the ladder
- Aerial Command seat (ACS)
- Remote operations with the Radio Remote (ladder, monitor and stabilizers)
- Ez-Climb™ Ladder
- 244 sq. Ft. of storage space
- Complies with NFPA standard
